SDK Description

Signature Algorithm

Rules for generating signatures: request parameters are sorted by dictionary, and then spliced into a string in the form of keyvalue string; finally sign=MD5(sortParam+secretKey).
Each merchant has its own appkey and secret
Note: If the value in the request parameter is NULL, then the string is not counted when splicing Signature string。
All signature validation is done at the gateway layer, and later service calls will not have signature rules rules。
For example:

// Input Parameters:
{
    'symbol': 'ltcbtc',
    'appKey': '0816016bb06417f50327e2b557d39aaa',
    'sign': 'a169740d0588141ef70b71cf11ff8bf3',
    'time': '1522055680'
}
// Signature Algorithm：

string = appKey0816016bb06417f50327e2b557d39aaasymbolltcbtctime1522055680

secretKey = xxxxxxxxxxxxxxxxx

sign = MD5(string+secretKey) = MD5(appKey0816016bb06417f50327e2b557d39aaasymbolltcbtctime1522055680xxxxxxxxxxxxxxxxx)

sign = 82d38bae5fc727feea4f7a96c7db0492

PlatformDemo地址: https://github.com/exchange-platformApi

Call Example

Overall Access Steps

Step 1: Resolve the domain name first

Step 2: Create application and get appKey/appSecret, configure callback address

Step 3: The user is authorized to register, and obtains the three-party merchant code

Step 4: Get the open platform counter-question token by code

Step 5: Access to open resources:

Preparation - Get appKey and set redirectUrl( callback address )

Open Platform is an OAuth2.0 authorization login system built based on OAuth2.0 protocol standard. Before accessing the open platform, you need to prepare the following access materials through the management background:

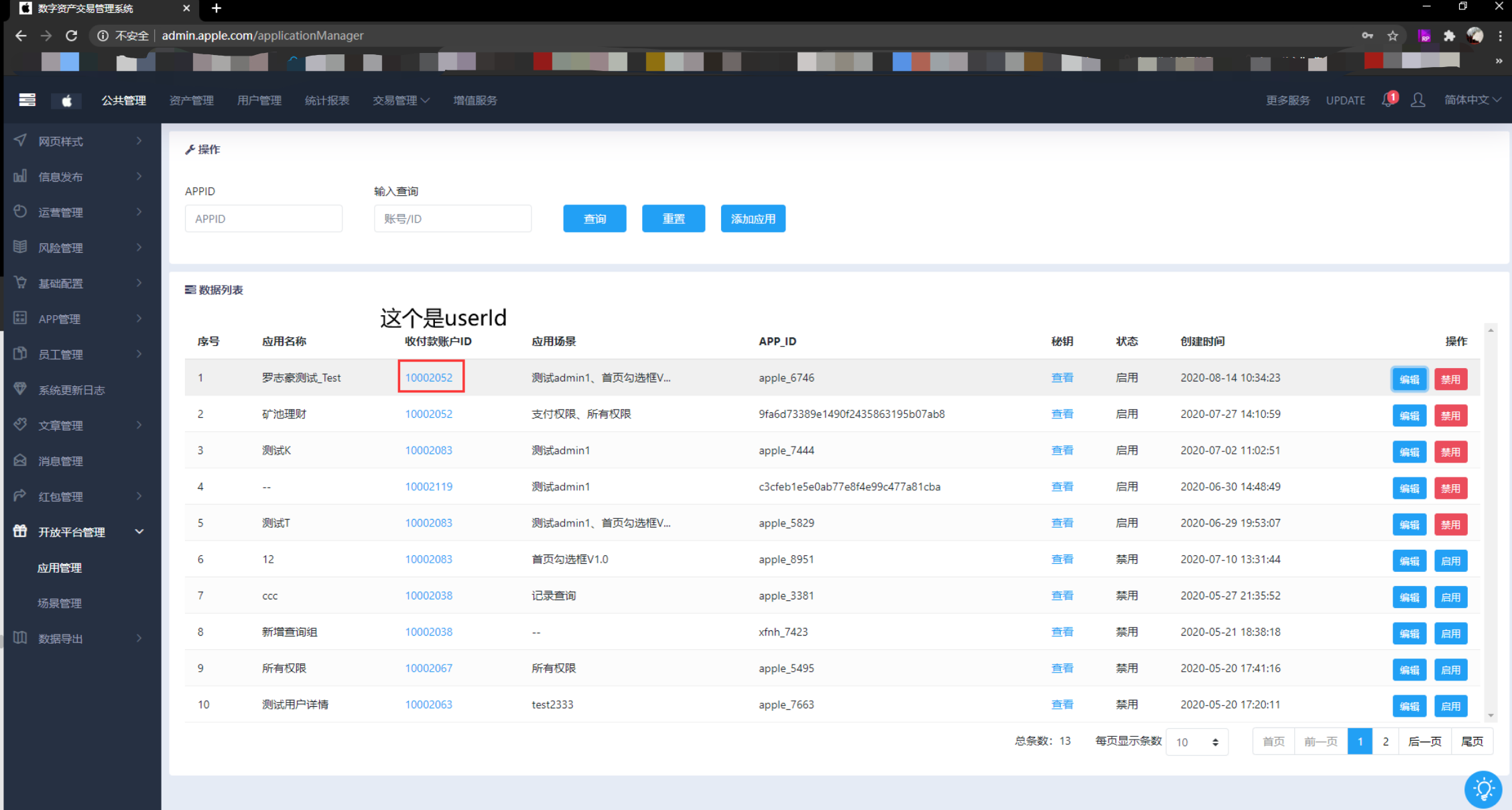

appKey: Used to bind one-to-one with the UID of the merchant who opened the open platform, which is necessary to obtain the login permission of the open platform;
redirectUrl: The address to be used to jump to after the successful opening of an authorized account on the open platform; this address is filled in according to the actual business needs, if you do not know the business needs, you can fill in the exchange home page by default.;

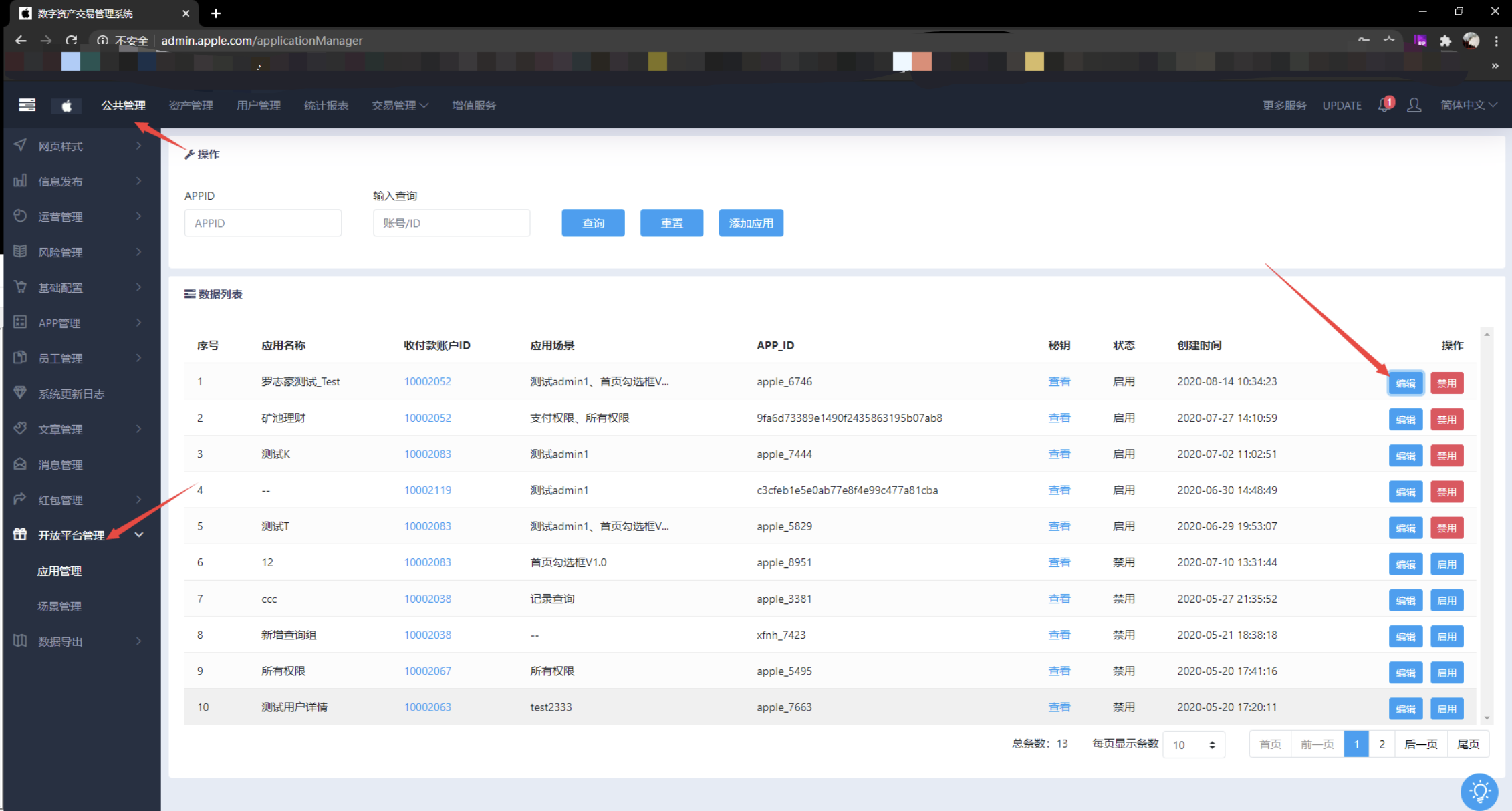

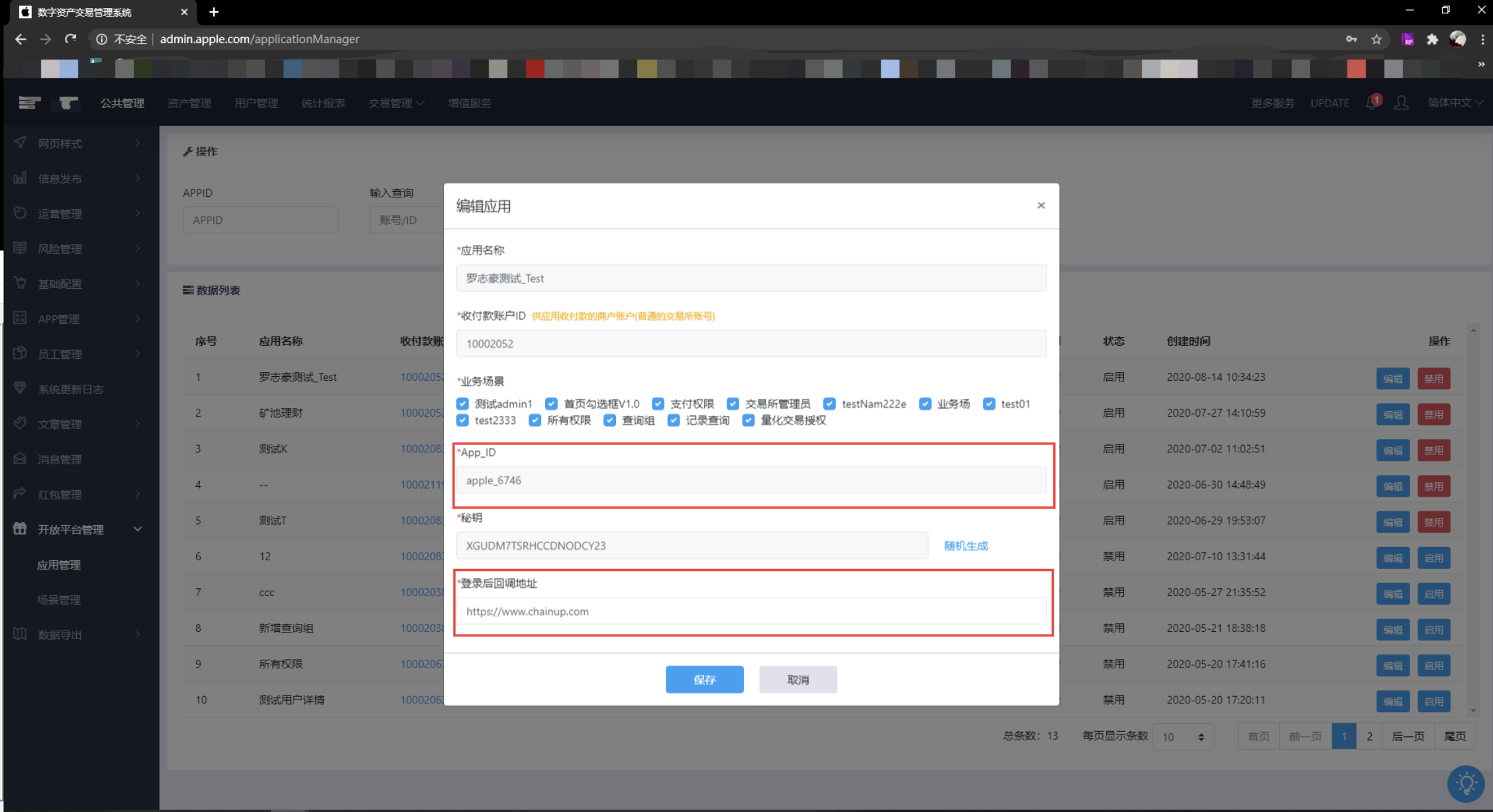

Based on the content in the red box, get the appKey and redirectUrl

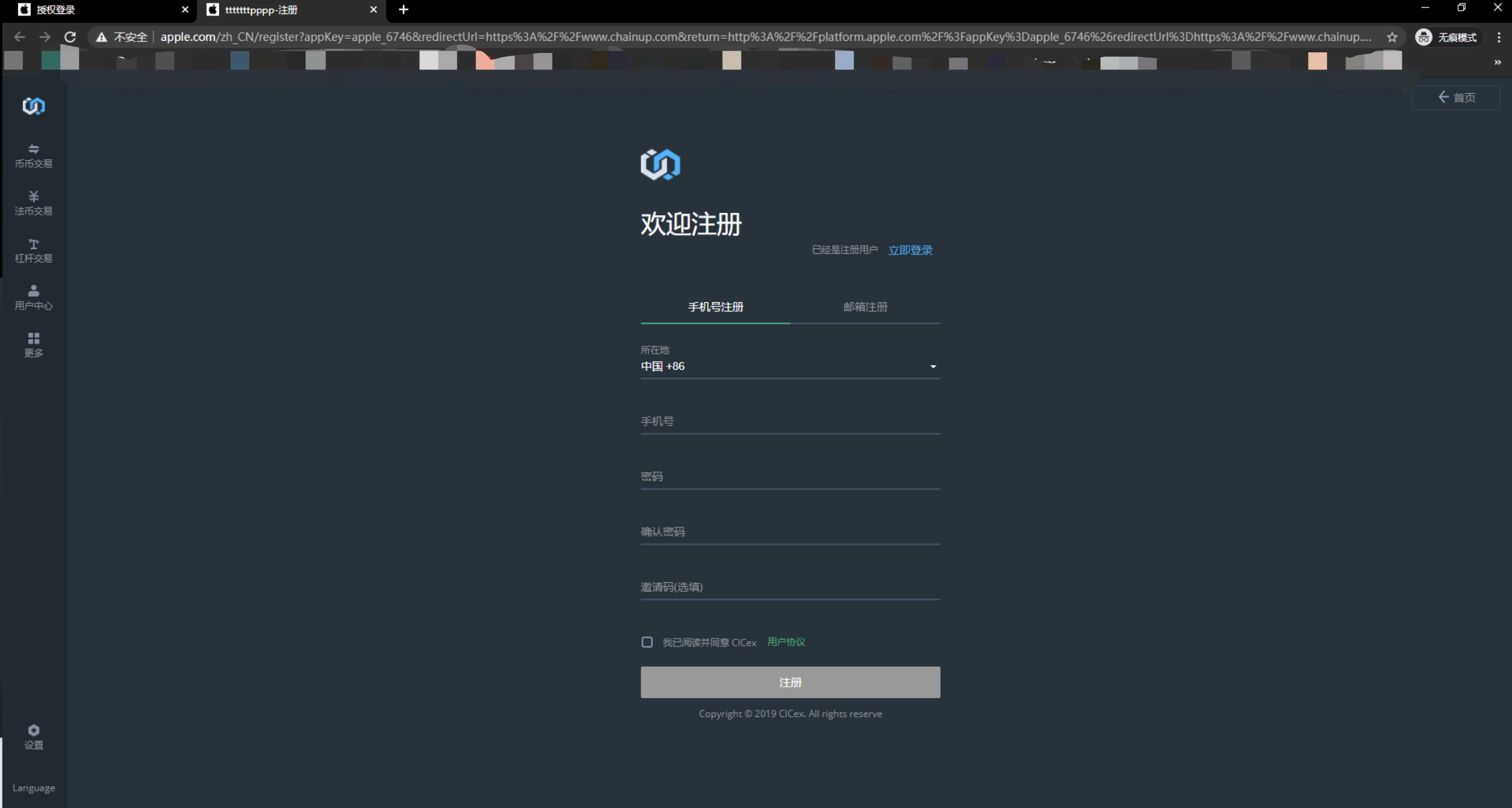

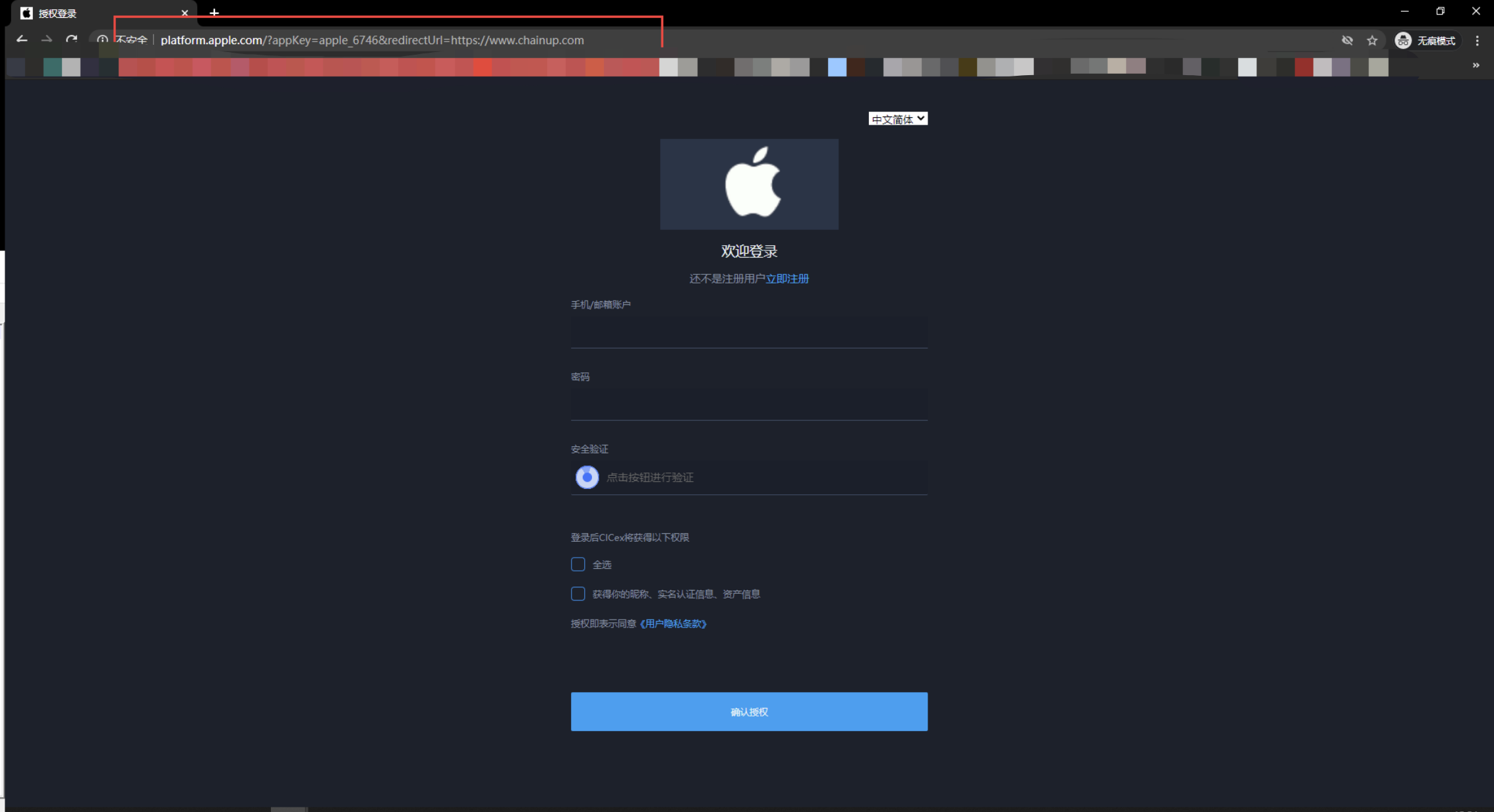

User Registration Authorization - OAuth Authorization Login Page Click Register with the correct appkey and redirectUrl Browser access address: http://service.xxx.com/platform/login.html?appKey=xxx&redirectUrl=https:xxxx

If you are not registered, register first; if you are already a registered user, just click the “Confirm Authorization” button in the previous image

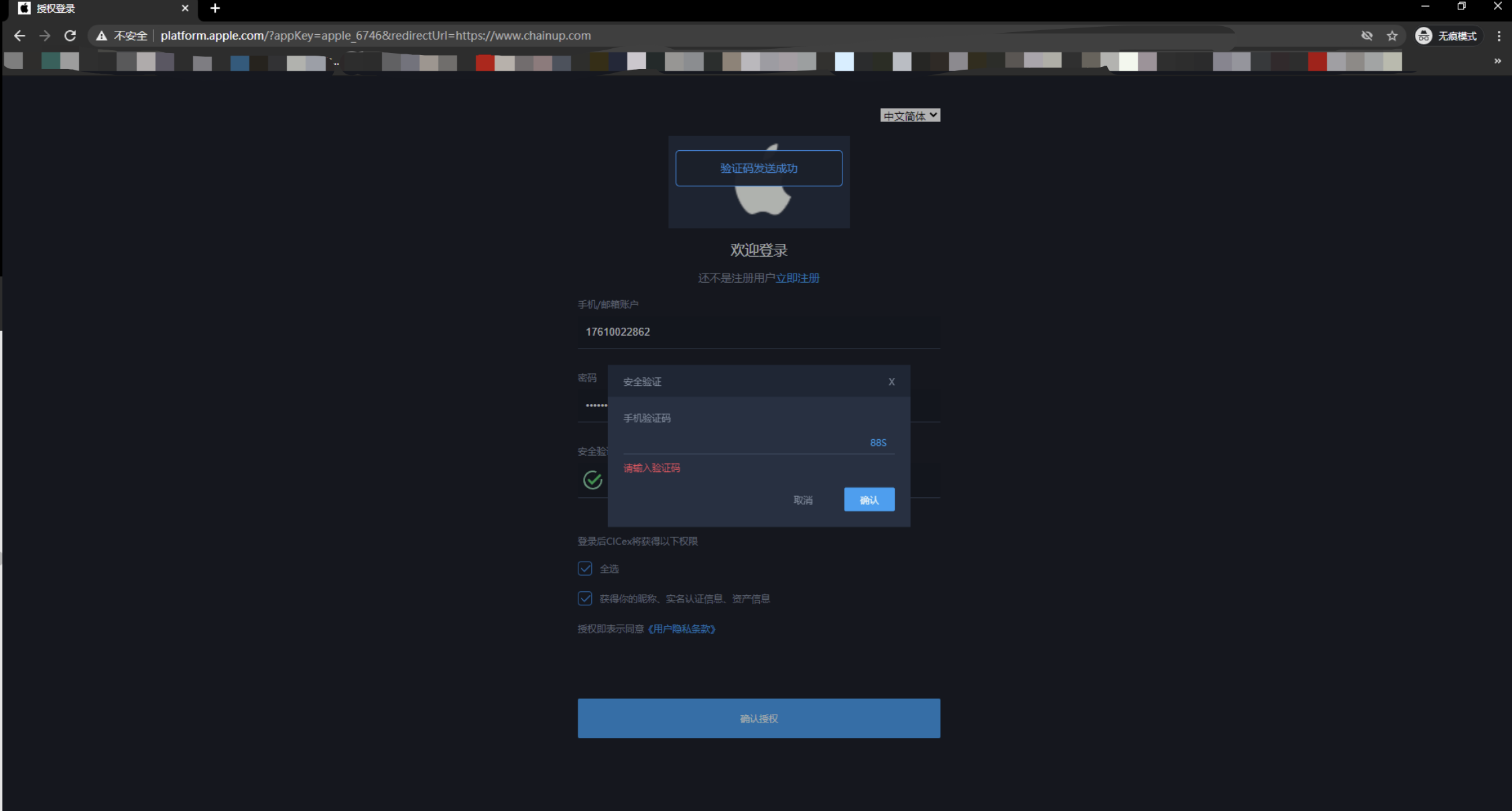

The system will send a verification code for authorization

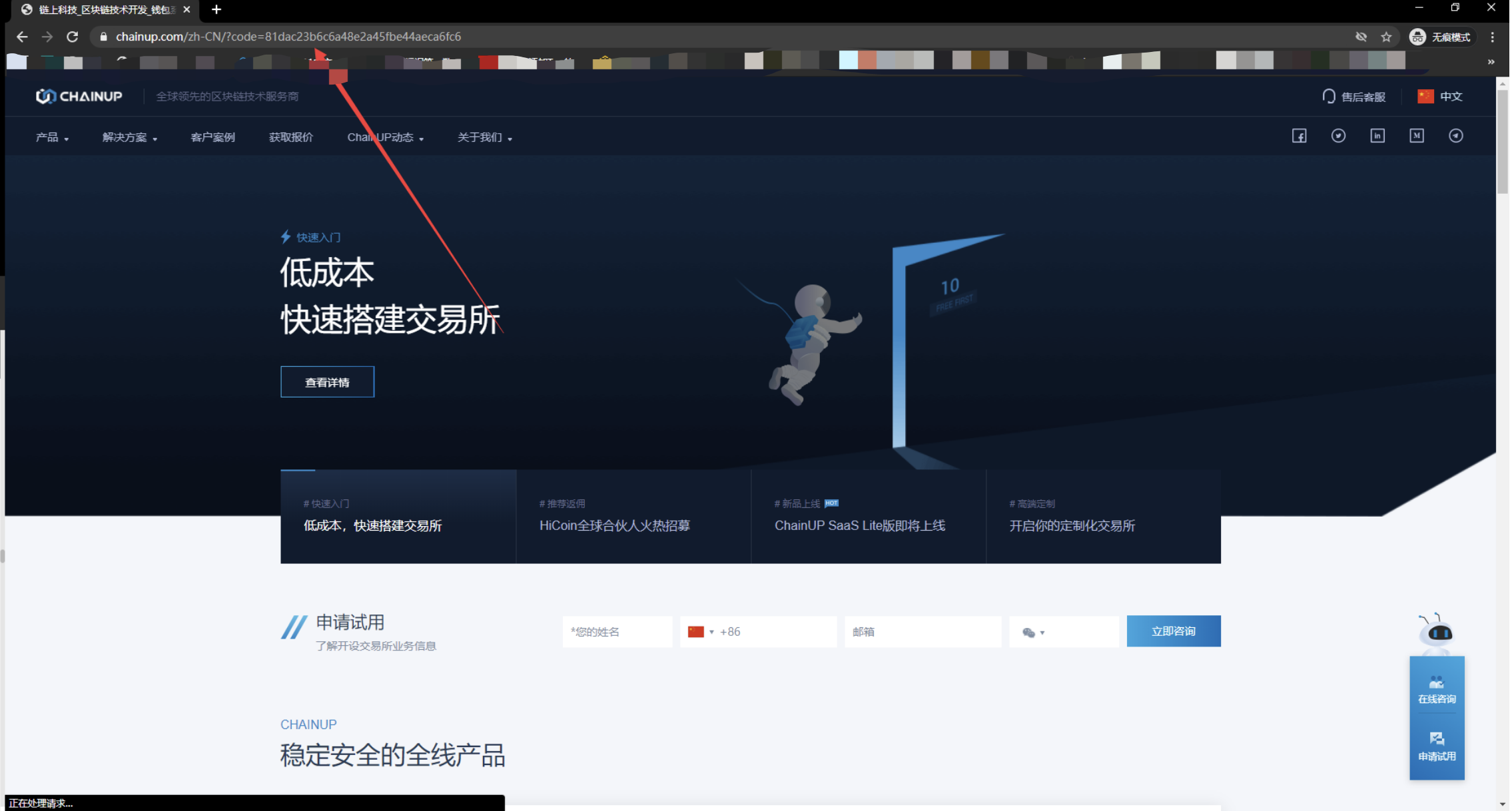

Register (or login) to get the code successfully If you fill in the first step of the registration callback address is the home page of the exchange; then you can see the following image, the arrow is the current Code obtained

Get token - Get token and openId by code

Generate signature scripts

Signature script configuration method:

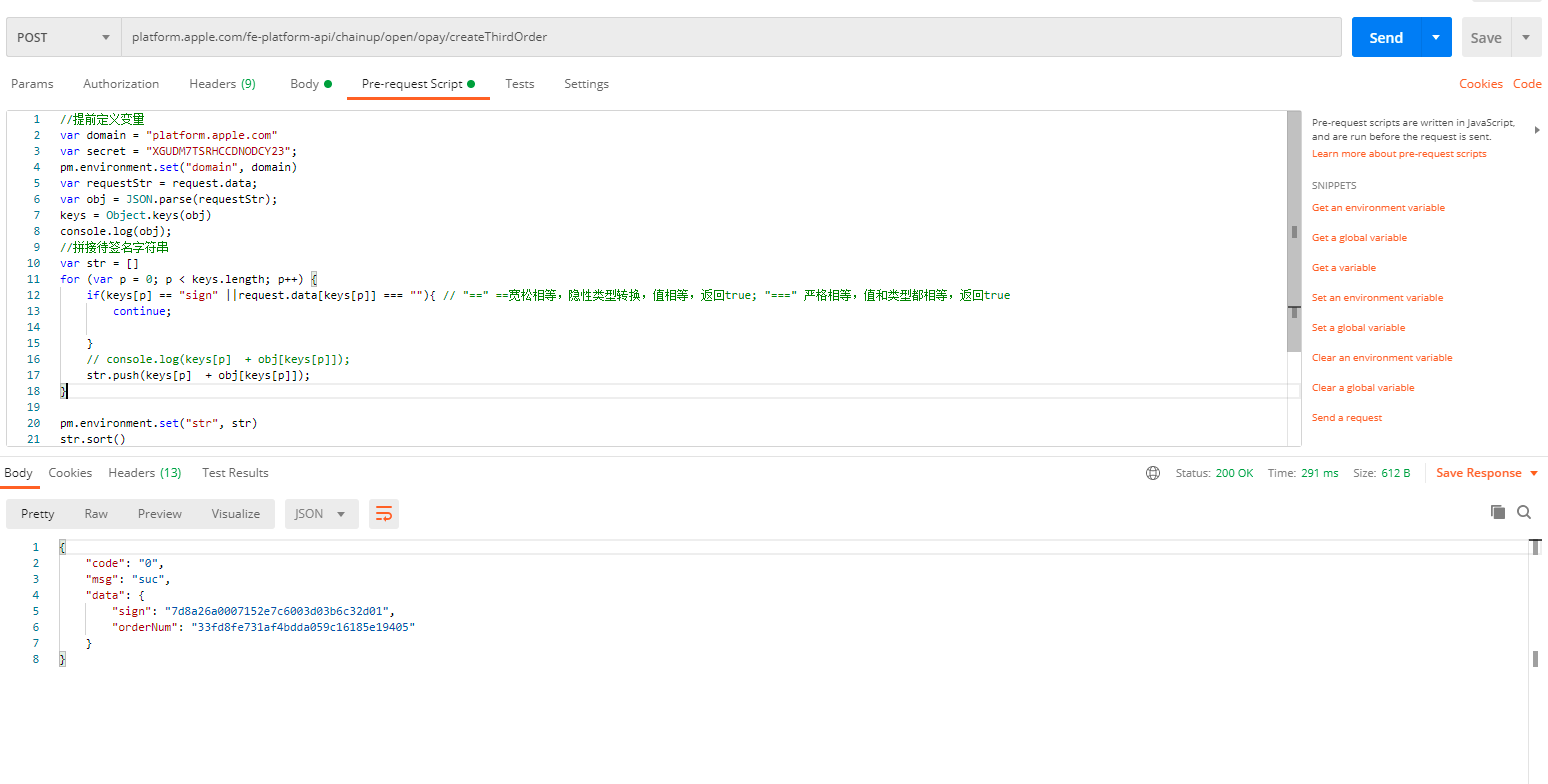

Configure the script content in the location shown below in the postman tool

The signature is automatically generated by entering "sign":"{{sign}}" in the request parameters ( refer to the screenshot of the request parameters in the subsequent steps )

Script content

//提前定义变量
var domain = "service.xxx.com"
var secret = "xxx";
pm.environment.set("domain", domain)
var requestStr = request.data;
var obj = JSON.parse(requestStr);
keys = Object.keys(obj)
console.log(obj);
//拼接待签名字符串
var str = []
for (var p = 0; p < keys.length; p++) {
    if(keys[p] == "sign" ||request.data[keys[p]] === ""){ // "==" ==宽松相等，隐性类型转换，值相等，返回true; "===" 严格相等，值和类型都相等，返回true
        continue;

    }
    // console.log(keys[p]  + obj[keys[p]]);
    str.push(keys[p]  + obj[keys[p]]);
}

pm.environment.set("str", str)
str.sort()
str.push(secret)
var s = str.join("")
console.log("准备签名");
console.log(s);

//MD5加密签名规格，并赋值给环境变量`sign`
var sign =CryptoJS.MD5(CryptoJS.enc.Latin1.parse(s)).toString();
pm.environment.set("sign", sign);

Call the interface for a token or openId

Interface Address: http://servoce.xfnh.com/platformapi/chainup/open/auth/token

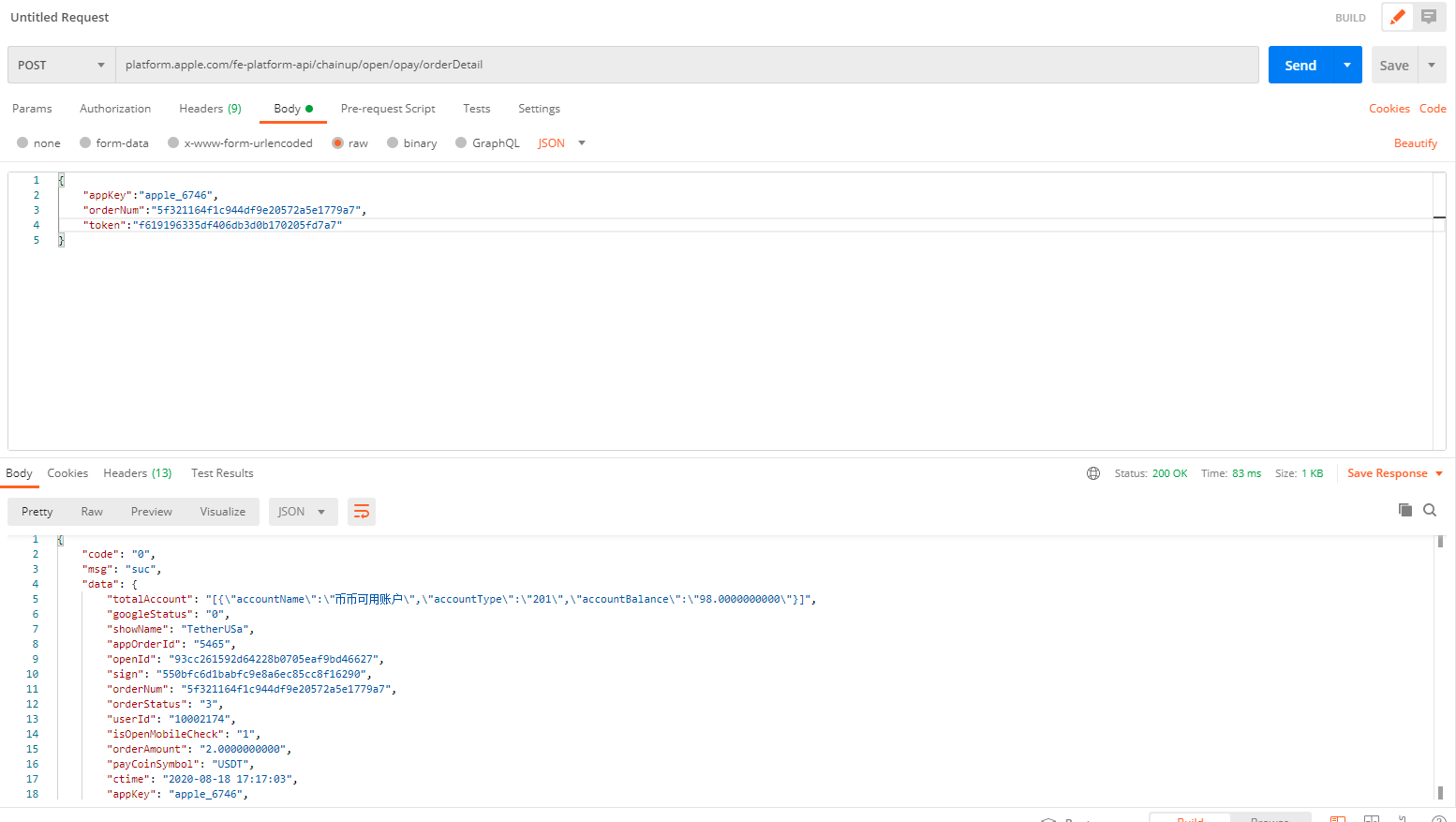

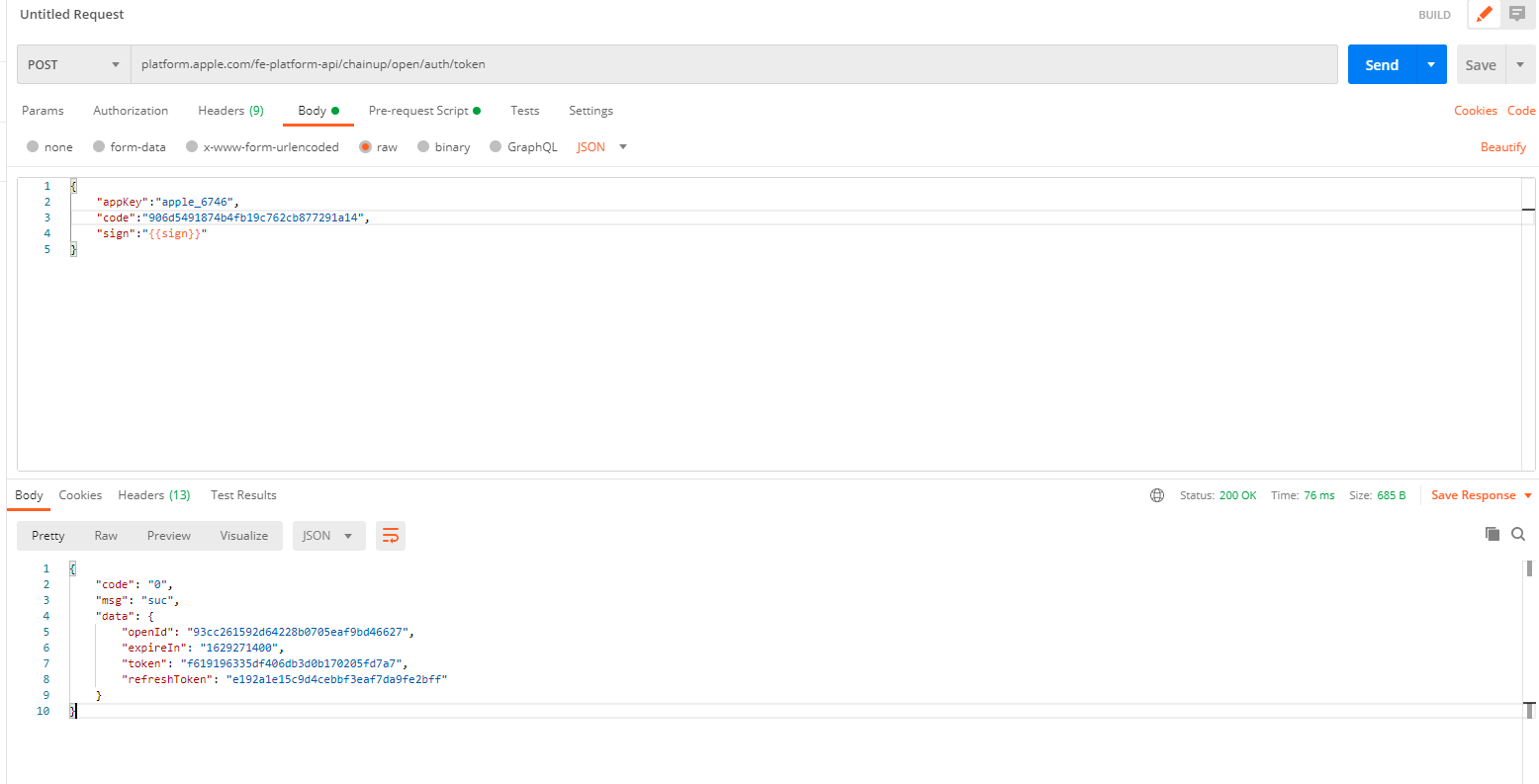

POSTMAN Tool call interface diagram:
